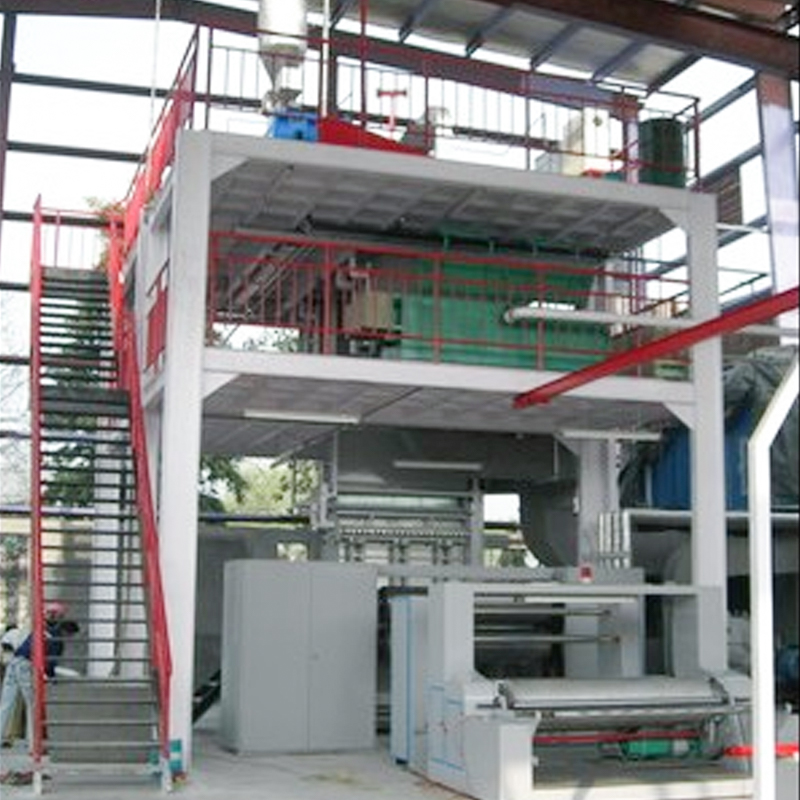

3.2m PP Spunbond Nonwoven Fabric Machine

PP spun Bund non-woven fabric machines (3.2 meters) should include all the parts & items as it is listed below.

1. Screw extruder ￠180 1 set
(1)Length dia percentage 1: 30
(2)Maximum rotational speed: 75r/Min
(3)Power: 110kw
(4)Adopts an AC motor and variable frequency control
(5)Recycle extruder: match #105 screws for recycling waste edge, 22kw AC motor

2. Double tub continuous melting filter unit 1 set
(1)Melting area: 3.5m2 ×2;
(2)Maximum pressure: 12MPa
(3)The allowed pressure balance after melting: 6MPa
(4)The allowed pressure of the jacket: 0.25MPa
(5)Maximum temperature: 310℃
(6)Heat transfer medium and heating style: 350 or above heat conduction oil cyclic heating;
(7)Filtering precious: 300um
(8)Material of the melt passing department is 1Cr18Ni9Ti; the material for the heating box is 16MnR.

3. Metering Pump 1pc Model No. YRA2×200 (delivery capacity 200 each)
(1)Pressure of the exit: 40 MPa
(2)Rotate speed: 5-30r/min
(3)Maximum pressure balance: 35MPa
(4)Working temperature: ≤330℃
(5)Temperature for cleaning: ≤450℃
(6)Motor: 4kw, AC motor.
(7)Fuji  frequency conversion governor

4. Spinneret 1pc (match spinneret board two pair)
(1)Heat conduction oil cyclic heating;
(2)Maximum temperature: 300℃

5. Cooling and drawing system, two pcs
(1)Made of aluminum
(2)perforated plate, bending table, 60um stainless mesh, multi-ply melting

6. Drafting 1pc ( specification: 3650×2000×65)
7. Diffusion 1pc

8. Lapping machine 1pc
(1)Motor power 10.5 kW
(2)Maximum speed: 120m/min

9. Thermo-bonded machine 1pc
(1)Roller: stiletto around, heat conduction oil cyclic heating;
(2)Oil lubricates the cooling bearing
(3)The exact temperature control is ±1℃
(4)Maximum speed: 120m/min
(5)Direct current & governing motor, power 30 kW

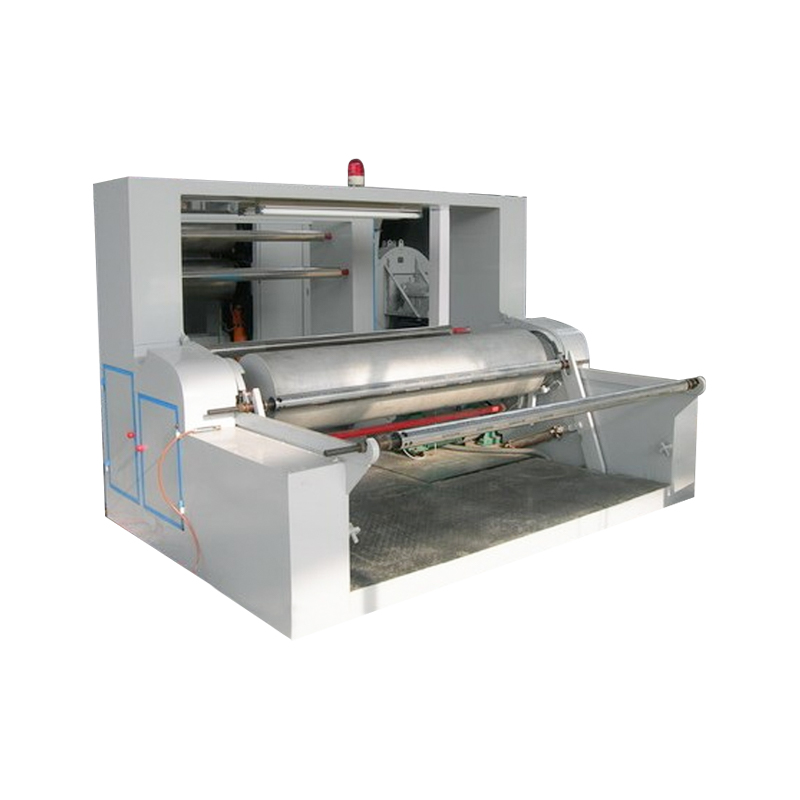

10. Rolling up machine 1pc
(1)Power: 7.5kw (Direct current & governing motor)
(2)Maximum speed: 120m/min

11. Slitting machine 1 pc
(1)AC motor, 4kw
(2)Maximum speed: 150m/min
(3)Width in slitting: freely controlled
(4)Fuji  frequency conversion governor

12. Carrier air conditioner 1pc

13. Hot stove 4pcs(36kw 2pc, 60kw 1pc, 12kw 1pc)
(1)Design pressure: 10Kpa
(2)Working pressure: 3Kpa
(3)Design temperature: 300℃
(4)The temperature precision: ±1℃
(5)Power: 3kw for 36kw and 60kw hot stove, and 1.5kw for 12kw hot stove
(6)Designed discharge: 12.5m3/h

14. Blower fan two pcs (45kw)
(1)Design discharge: 14013 m3/h
(2)Design pressure: 4736pa
(3)Rotate speed: 1450r/min
(4)Power: 45kw
(5)Fuji  frequency conversion governor

15. Blow fan for smoke  1 pc
(1)Design discharge: 1410-1704 m3/h
(2)Design pressure: 3507-3253 pa
(3)Rotate speed: 2900r/min
(4)Power: 4kw
(5)Fuji  frequency conversion governor

16. Controlling system for electric 1 set (controlled by switch or touch screen, up to the buyer’s choice)

17. Air compressor 1 set  7.5KW
18. Material store tank 1 set 300KG
19. Feeder  1 set  10HP

20. Ultrasonic cleaner , ultrasonic wave cleaner 150000 1 set
(1)Dozer for master batch 200W 2sets
(2)Fuji  frequency conversion governor

21. Electric furnaces for cleaning  1set
22. Steel frame  12*12*6.5 1set
23. Conveyor belt  3.65*10M 1piece
24. Electric host/lift 1 ton/set 2sets
25. Piping one suit
