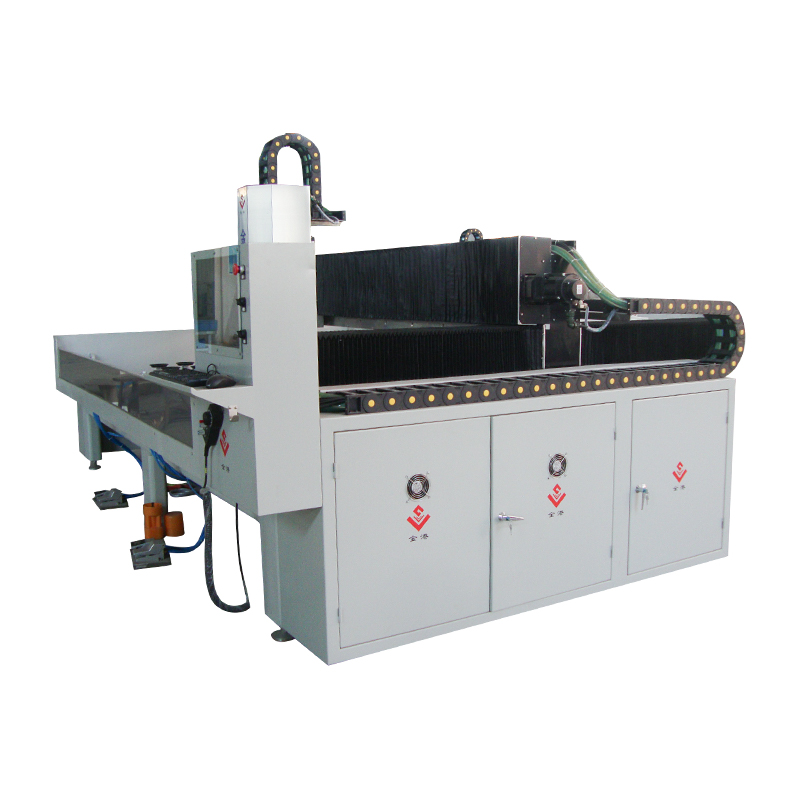

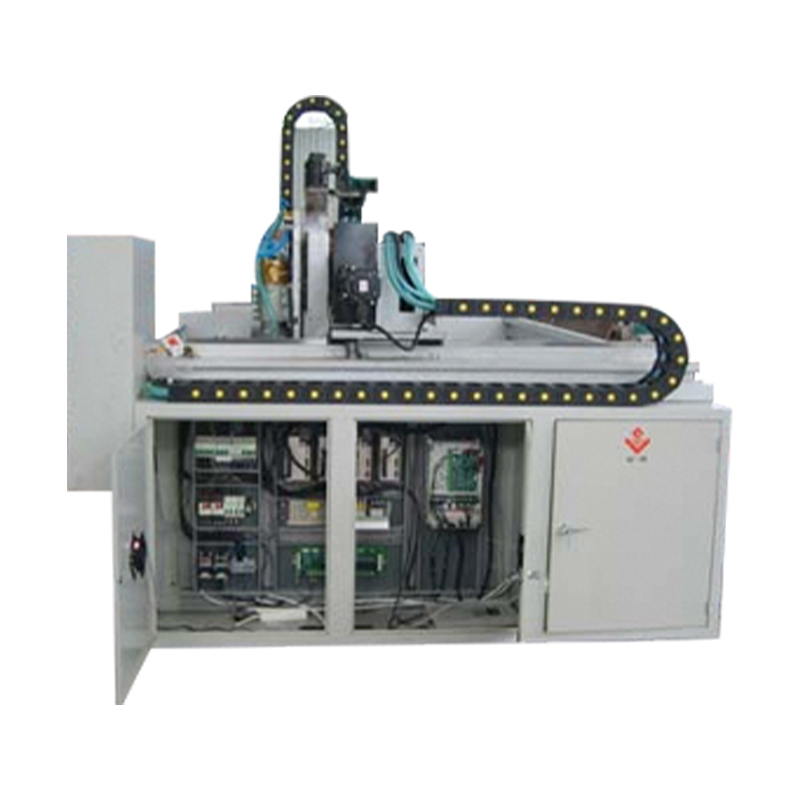

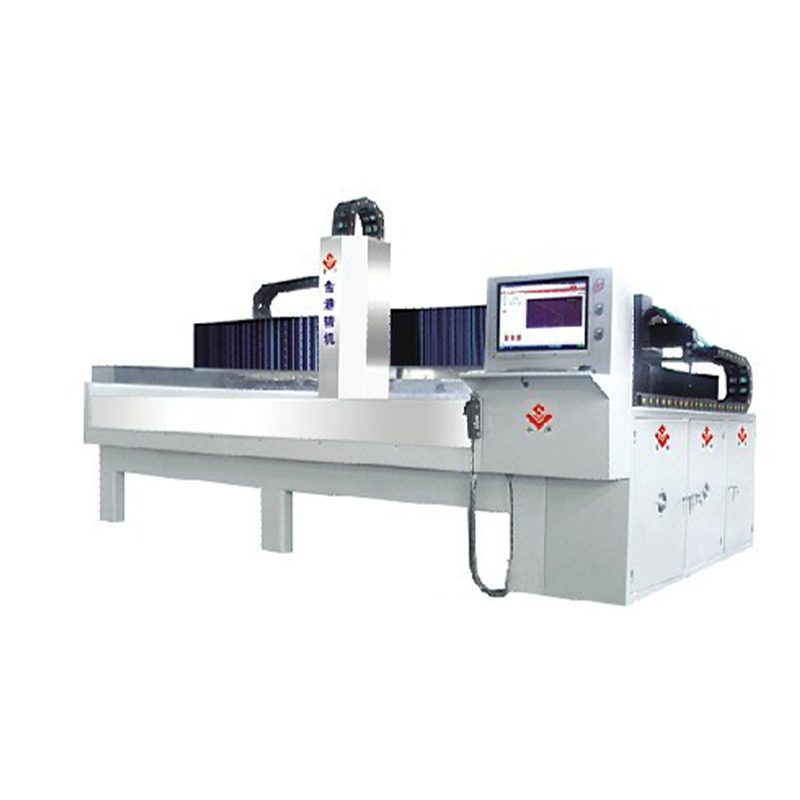

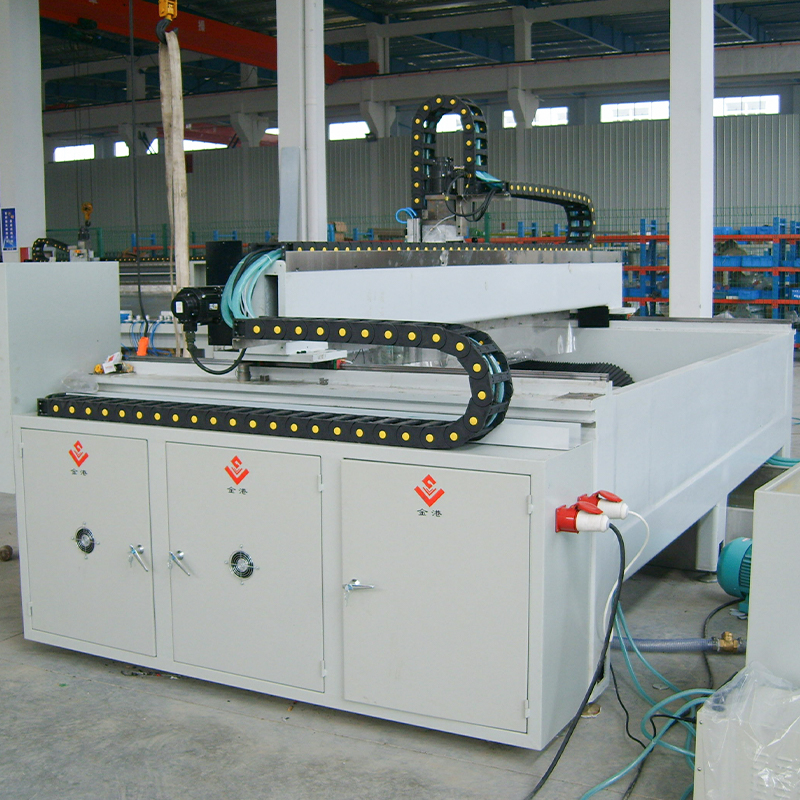

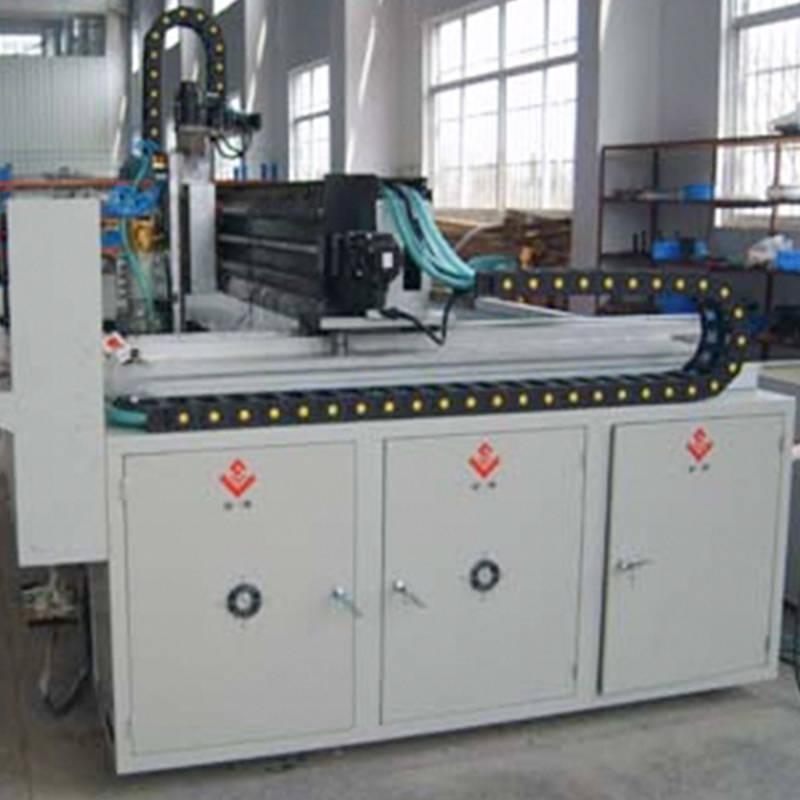

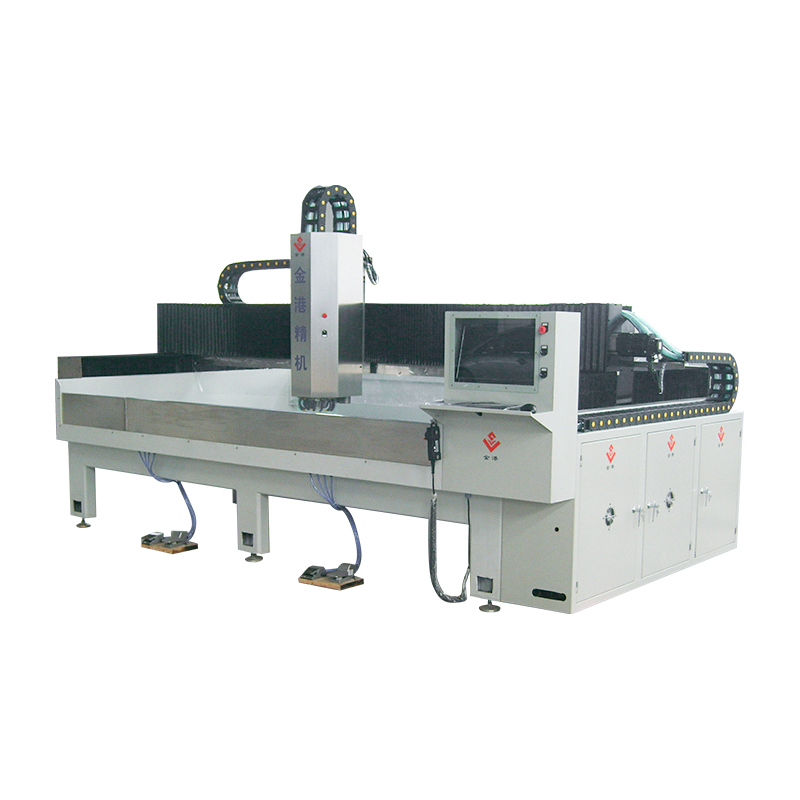

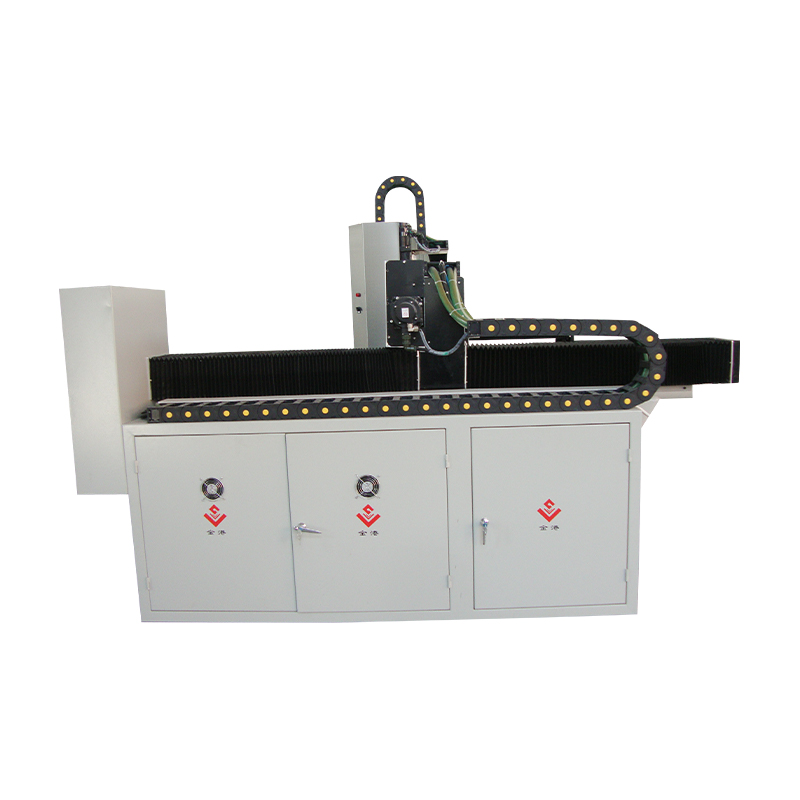

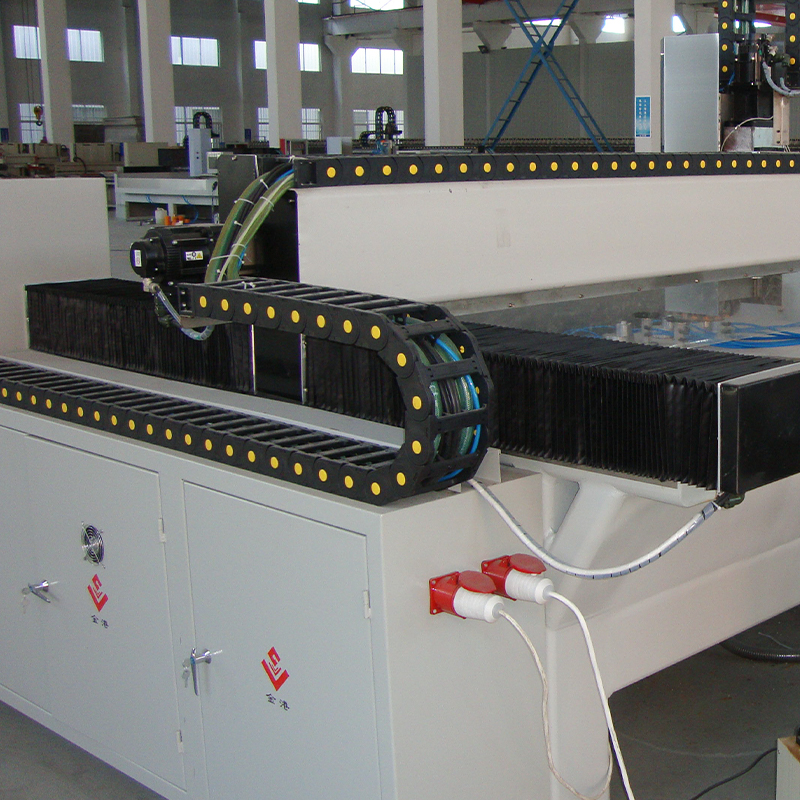

Automatic Horizontal CNC Shaped Glass Edge Grinding Machine

Automatic Horizontal CNC Shaped Glass Edge Grinding Machine

The CNC special-shaped glass edge grinding processing center is a device that focuses on glass product processing, especially good at glass edge grinding and arc product production. The equipment is ingeniously built by a professional manufacturer, with both professional design and high-quality configuration. It can provide users with efficient and accurate glass processing services and occupies an important position in the field of glass processing. This product is sold directly by a professional manufacturer, and the core components are all high-quality brand products. It uses Panasonic servo motors imported from Japan, which are powerful and stable in operation; it is matched with a Delta frequency conversion system to achieve precise speed control; the combination of Hiwin guide rails and high-precision ball screws further guarantees the high precision and high stability of the equipment. At the same time, the machine is finely crafted, which effectively extends the service life of the equipment. In addition, the product provides a variety of large, medium, and small models and specifications to fully meet the production and processing needs of different scales.​

Contact Us
  • Describe
  • Implementation Standards
Describe

Diverse bed structures: The machine bed provides two options: steel structure and integral casting structure. Users can flexibly choose according to their own needs and processing scenarios to meet diverse production needs.​ Stable drive system: adopts a unique moving beam (double screw) drive mode, the operation process is smooth and accurate, and effectively guarantees the stability and reliability of the processing process.​ High-precision transmission components: X, Y, and Z axes are equipped with ground-grade precision ball screws and high-density rectangular guide rails, which give the machine tool excellent rigidity, achieve high-speed, high-precision processing, and ensure that the processed products have excellent finish and flatness.​Wide software compatibility: The interface adopts international standard G code instructions, which are perfectly compatible with various engraving software at home and abroad, allowing users to choose appropriate software according to usage habits and processing requirements, thereby improving operational convenience and processing efficiency.

Is custom processing available? Yes Brand Jingang
Model CNC glass edge grinding center Main motor power BT40/7.5 (kw)
Processing size range 2000*1000*200 (mm) Main shaft speed range 10000 (rpm)
Number of cutting tools 8 Working mode Grinding

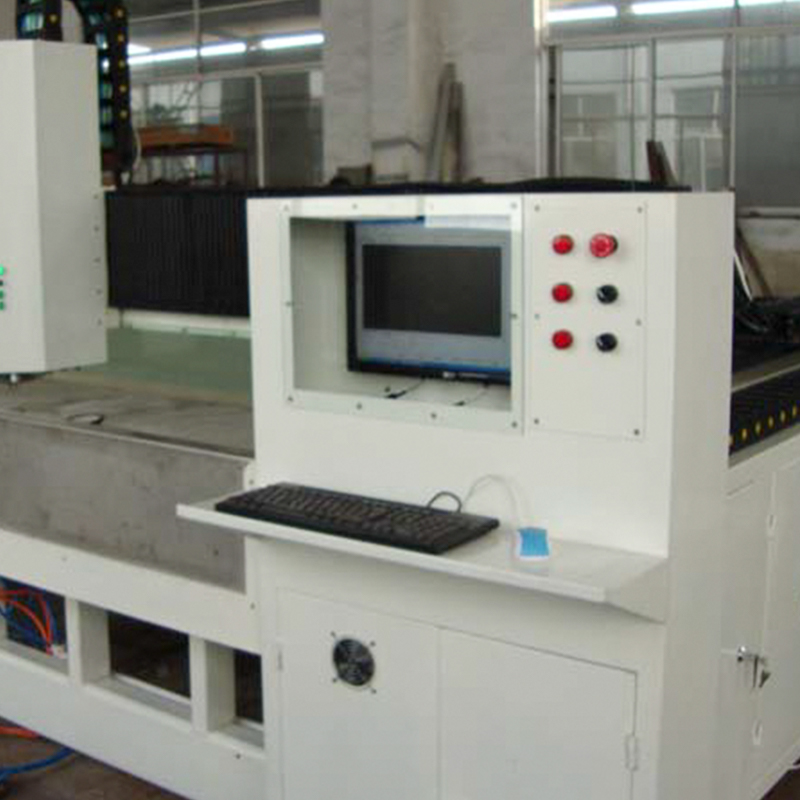

Control system Shanghai CNC Layout Horizontal
Power type Mechanical transmission Application Edge grinding
Application range Glass edge grinding Applicable industries General purpose
Product type Brand new In stock Yes

Parameter performance indicators of glass edge grinding processing center
Technical specifications X, Y, Z-axis motion positioning accuracy ±0.005/400mm
X, Y, Z-axis repeat positioning accuracy ±0.05mm
X, Y, Z-axis working stroke: 2000×1000×200mm
Work table dimensions 2000×1000mm
Bed weight =3500kg
High-speed spindle motor power 7.5kw
Spindle speed 10000rpm
Maximum grinding speed 8m/min
Machine tool dimensions 3600×2350×2400mm
