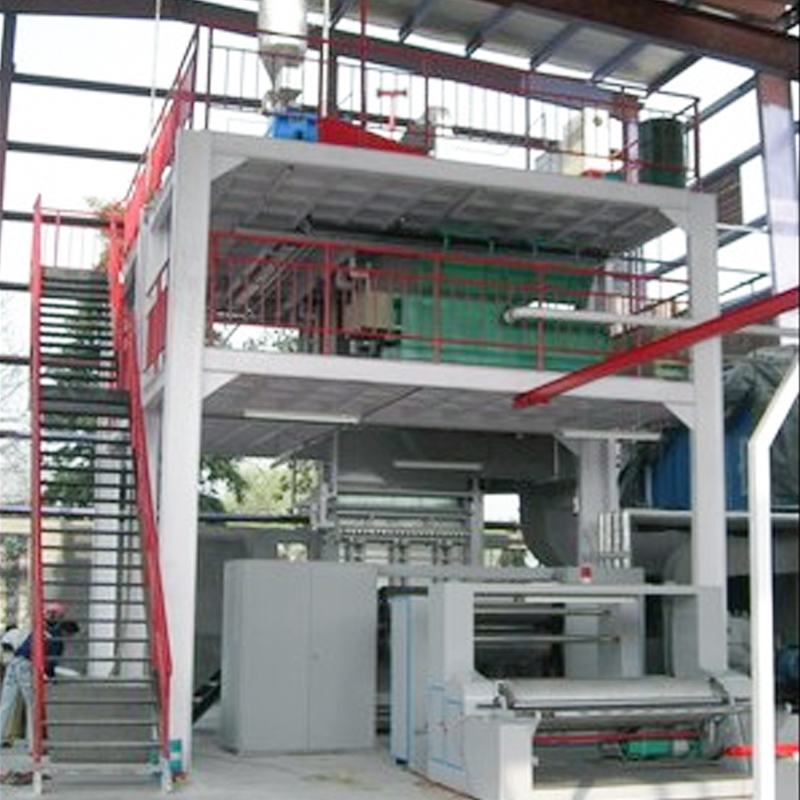

PP spun Bund non-woven fabric machines (1.6 meters) should include all the parts & items as listed below.

1. Screw extruder ￠135  1 set
（1）Length dia percentage 1: 30
（2）Maximum rotational speed: 75r/Min
（3）Power: 75kw
（4） UK, European 590c governor
（5）Recycle extruder: match #90 screws for recycling waste edge, 15kw AC motor

2. Double tub continuous melting filter unit 1 set
（1）Melting area: 2.5m2 ×2
（2）Maximum pressure: 12MPa
（3）The allowed pressure balance after melting: 6MPa
（4）The allowed pressure of the jacket: 0.25MPa
（5）Maximum temperature: 310℃
（6）Heat transfer medium and heating style: 350 °C or above heat conduction oil cyclic heating
（7）Filtering precious: 300um
（8）Material of the melt passing department is 1Cr18Ni9Ti; the material for the heating box is 16MnR

3. Metering Pump 1pc Model No. YRA 1×200 (delivery capacity 200 each)
（1）Pressure of the exit: 40 MPa
（2）Rotate speed: 5-30r/min
（3）Maximum pressure balance: 35MPa
（4）Working temperature: ≤330℃
（5）Temperature for cleaning: ≤450℃
（6）Motor: 4kw, AC motor.
（7）Fuji  frequency conversion governor

4. Spinneret 1pc (match spinneret board two pair)
（1）Heat conduction oil cyclic heating;
（2）Maximum temperature: 300℃

5. Cooling and drawing system, two pcs
（1）Made of aluminum
（2）perforated plate, bending table, 60um stainless mesh, multi-ply melting

6. Drafting 1pc ( specification: 1910×2000×65)

7. Diffusion 1pc

8. Lapping machine 1pc
（1）Direct current & governing motor, power 7.5 kw
（2）Uk, European 590+ governor
（3）Maximum speed: 120m/min

9. Thermo-bonded machine 1pc
（1）Roller: stiletto around, heat conduction oil cyclic heating;
（2）Oil lubricates the cooling bearing
（3）The exact temperature control is ±1℃
（4）Maximum speed: 120m/min
（5）Direct current & governing motor, power 22 kW
（6）UK, European 590+ Direct current & governing

10. Rolling up machine 1pc
（1）Power: 5.5kw (Direct current & governing motor)
（2）UK, European 590+, governor
（3）Maximum speed: 120m/min

11. Slitting machine 1 pc
（1）AC motor, 3kw.
（2）Maximum speed: 150m/min
（3）Width in slitting: freely controlled
（4）Fuji  frequency conversion governor

12. Carrier air conditioner 1pc

13. Hot stove 3pcs(36kw 1pc, 48kw 1pc, 12kw 1pc)
（1）Design pressure: 10Kpa
（2）Working pressure: 3Kpa
（3）Design temperature: 300℃
（4）The temperature precision: ±1℃
（5）Power: 3kw for 36kw and 48kw hot stove, and 1.5kw for 12kw hot stove
（6）Designed discharge: 12.5m3/h

14. Blower fan two pcs (30kw）
（1）Design discharge: 14013 m3/h
（2）Design pressure: 4736pa
（3）Rotate speed: 1450r/min
（4）Power: 30kw
（5）Fuji  frequency conversion governor

15. Blow fan for smoke  1 pc
（1）Design discharge: 1410-1704 m3/h
（2）Design pressure: 3507-3253 pa
（3）Rotate speed: 2900r/min
（4）Power: 3kw
（5）Fuji  frequency conversion governor

16. Controlling system for electric 1 set (controlled by switch or touch screen, up to the buyer’s choice)

17. Air compressor 1 set  7.5KW
18. Material store tank 1 set 300KG
19. Feeder  1 set
20. Ultrasonic cleaner, ultrasonic wave cleaner 150000 1 set

21. Dozer for master batch 200W 2sets
（1）Fuji  frequency conversion governor

22. Electric furnaces for cleaning  1set
23. Steel frame  6.5*6.5*6.25M 1set
24. Conveyor belt  2050*9.4M 1piece
25. Electric host/lift 1 ton/set 2sets
26. Piping one suit
